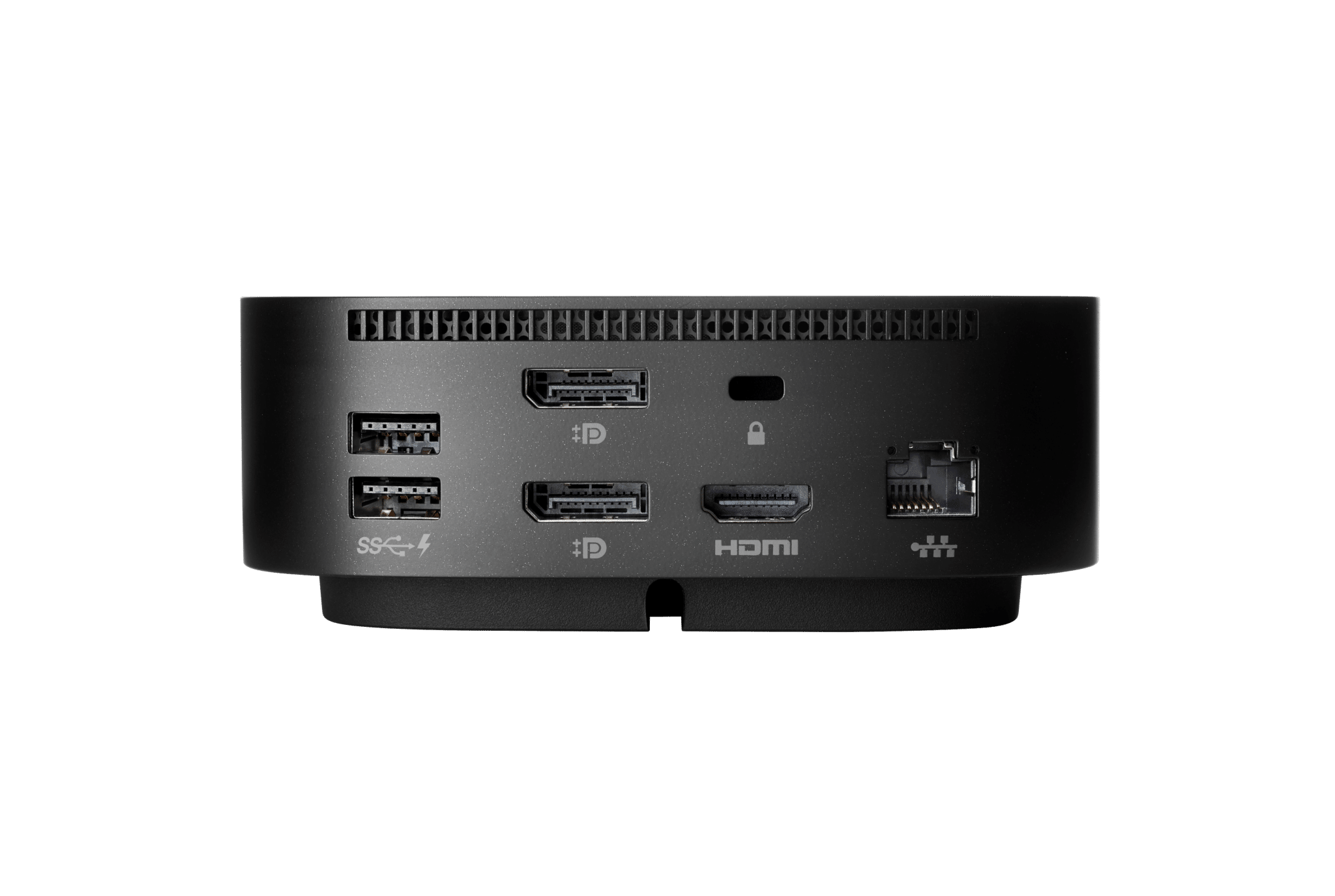

HP manufacturer image of the USB-C Dock G5 (5TW10AA) rear connectors. Match the exact dock and host-port specification before selecting the display, Ethernet and power connections; a connector count does not establish a supported display arrangement.[6]
When an HP USB-C Dock G5 partly works, test charging, display output and wired networking separately. A working keyboard or Ethernet connection does not establish that the laptop’s USB-C port supports video and charging. Verify the exact host port and dock model before treating partial operation as a failed dock.
This guide focuses on the HP USB-C Dock G5, rather than assuming that G5 Essential, USB-C/A Universal G2 and Thunderbolt docks share the same requirements. Record the product number on the dock and laptop, the adapter, connected displays and the symptom that changed.
Check the host port and power requirements first
HP specifies USB-C Power Delivery and DisplayPort Alt Mode as minimum host requirements for the Dock G5. Its advertised host power is up to 100 W; that is not a promise that every workstation will receive its required power through the dock. Check the exact laptop’s supported charging arrangement and adapter requirements.[1]
Use the laptop’s product specification to identify the actual USB-C port you connected. Two similar-looking ports on the same computer can have different capabilities. Record the required display arrangement separately: the number of connectors on a dock does not by itself establish which resolution, refresh rate and extended-display combination the host supports.
| Item | Record this | Why it changes the diagnosis |
|---|---|---|
| Laptop and host port | Product number, selected physical port and its documented functions | A data connection alone does not establish video or host charging support |
| Dock and power supply | Exact product number and the matched dock adapter | A similarly named dock or mismatched adapter can send the test down the wrong path |
| Display path | One monitor model, input, cable and intended mode before adding others | A baseline that works can be compared with the larger arrangement |
| Network path | Dock adapter detected or absent, link state and affected business connection | Missing hardware detection and a connected-but-unusable network are different faults |
| Timing | Cold boot, reconnect, sleep/resume or change after a particular update | A repeatable trigger is more useful than “sometimes flaky” |
Do not buy a replacement dock to solve an unsupported host-port requirement. If the computer needs a separate approved power adapter, document that as the intended setup rather than training users to ignore a charging warning.
Inspect the connection, then establish one working display
Check the dock’s host cable and laptop port for damage before repeated reconnects. HP has a specific G5/G5 Essential external-monitor advisory about damaged USB-C connectors, scoped to the documented products and Windows version; its handling advice is to align the connector and insert or remove it straight. The advisory does not diagnose every black-screen ticket.[2]
- Confirm the monitor has power and the intended input is selected.
- Start with one supported display and one known-good compatible cable, with unnecessary video adapters removed.
- Test the same monitor by a supported direct connection to the laptop, when available.
- Compare the dock with a second compatible host, or the original host with a known-good compatible dock, changing one component at a time.
- Only after that baseline works, add the next display and validate the intended display mode.
Illustrative example: one display works directly and through the dock, while adding a second at the requested mode fails. Preserve that result and review the exact supported host/display combination. Reinstalling every USB driver would not answer the missing compatibility question.
Separate wired-network detection from network access
First determine whether Windows detects the dock’s Ethernet adapter. If it does, record whether the physical link is present and whether the machine obtains the expected network configuration. Then test the business destination that failed. A working web page is not proof that an internal file service, VPN route or required application is reachable.
| Observation | Next controlled comparison | Evidence to keep |
|---|---|---|
| Dock adapter is absent | Check host connection and approved driver state; compare a known-good compatible setup | Adapter presence, device error if any, host/dock combination |
| Adapter exists but there is no link | Try a known-good patch cable and approved working network port | Cable/port used and link result |
| Link exists but access fails | Have the network owner compare expected addressing, DNS, access policy and required route | Exact failing destination and relevant configuration, without exposing secrets |
| Failure begins after resume | Repeat the documented sleep/reconnect scenario before and after an approved change | Trigger, component versions and pass/fail outcome |
Do not bridge adapters, bypass network access controls or disable the firewall to turn the connection green. If Wi-Fi is working, that can keep the user productive while the wired issue is investigated; it does not prove that the dock’s Ethernet path has recovered.
If the computer itself also fails when undocked, change branches to HP startup and UEFI diagnostic triage. HP provides a separate Windows dock/display diagnostic tool on its hardware-diagnostics page; check its current supported setup and use its evidence where applicable.[3]
Use updates as a controlled test, not a universal cure
Review applicable HP driver, BIOS and dock-firmware recommendations after the physical and compatibility checks. HPIA lists the Dock G5 among its supported accessories; use it only on a supported host configuration and keep the chosen package information.[4]
HP Firmware Installer distinguishes staging firmware on a host from actually applying it to a connected peripheral. A package present on the PC is therefore not enough evidence that the dock firmware changed. Follow the exact package’s current instructions and verify the installed peripheral result.[5]
Arrange a maintenance window and keep the dock powered and connected throughout its firmware update. HP warns that connected devices and networking can be disrupted during the process and that disconnecting a peripheral during flashing can damage it. Do not run the update during the user’s active call or remote-only session that depends on that same dock.[5]
After a completed update, repeat the same charging, display, Ethernet and sleep/resume tests that failed before. Retain the original result as a comparison. A newly installed package with no reproduced task test leaves the incident open.
Make the approved desk configuration easy to support
Close the ticket with the laptop/port, dock and adapter identities; approved display arrangement; relevant versions; the precise fix; and the verified restart/reconnect/resume behavior. Label any required separate power supply. Keep a known-good test cable or spare combination identifiable so the next technician does not rebuild the investigation from memory.
For a new or rebuilt HP PC, the HPIA deployment checklist incorporates the desk setup into pilot acceptance. For cross-brand lifecycle ownership, the workstation standardization guide connects this record to replacements and user handoffs.
ALLMSP’s HP hardware support specifically covers docking stations, USB-C, displays, Ethernet and charging setups. Request help with an HP desk configuration with the exact device combination and repeatable symptom so compatibility, repair and replacement decisions use the same evidence.
Frequently asked questions
Why does my HP Dock G5 keyboard work but the monitor does not?
Different dock functions depend on different host capabilities. Confirm that the exact laptop port supports DisplayPort Alt Mode, then test one supported display, its input and a known-good cable.
[1]Does any USB-C port support the HP USB-C Dock G5?
Do not assume so. HP lists USB-C Power Delivery and DisplayPort Alt Mode as minimum requirements. Verify the specific host port and laptop configuration rather than relying on connector shape.
[1]Does the Dock G5 provide enough power for every HP workstation?
No universal power guarantee follows from the dock model. HP advertises up to 100 W to the host; compare that with the exact workstation’s approved charging requirements and use its supported power arrangement.
[1]Are Dock G5, G5 Essential and Thunderbolt dock instructions interchangeable?
No. Identify the exact product number and use its own compatibility, firmware and setup instructions. Similar naming does not establish identical capabilities.
What should I test when only one external display works?
Establish one working monitor and cable first, then add the second display. Check the exact host, connection path and intended display modes against the supported combination before treating it as a driver fault.
What if the USB-C connector or host port looks damaged?
Stop repeated connection attempts and arrange inspection or service. HP’s specific G5 monitor advisory addresses connector damage and correct straight insertion/removal, but it is not a diagnosis for every display failure.
[2]How can I tell a dock Ethernet fault from a network access fault?
Check adapter detection first, then physical link, expected network configuration and the actual failing business destination. Keep those observations separate so cable, driver and access-policy investigations use the right evidence.
Does installing HP Firmware Installer prove the dock was updated?
No. HP documents staging on the host separately from application to the connected peripheral. Confirm completion and the peripheral’s installed result using the applicable package instructions.
[5]Can I unplug the dock during its firmware update?
Keep the dock powered and connected until the update has completed according to its instructions. HP warns that disconnection during firmware installation can damage the peripheral.
[5]Which checks should pass before closing a dock ticket?
Retest charging, the approved display arrangement, wired business access, restart, reconnect and sleep/resume as relevant to the original failure. Record the exact supported hardware combination and any remaining exception.
