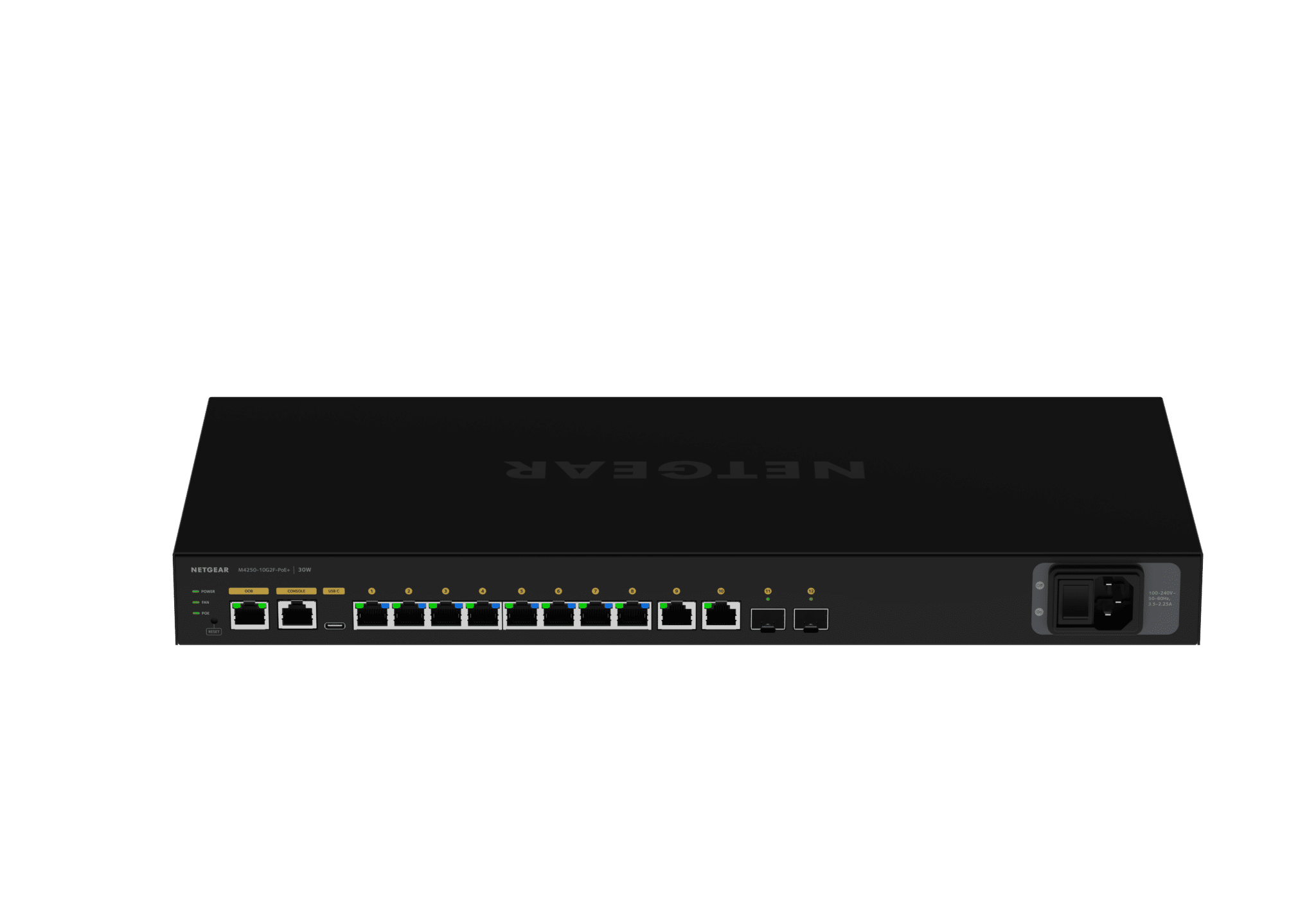

NETGEAR M4250-10G2F-PoE+ (GSM4212P) manufacturer product image: ten 1 GbE copper ports and two 1 GbE SFP ports; the model name does not mean 10 GbE.
An M4250 AV profile is a configuration starting point. Acceptance requires the intended source and receiver to discover or address each other, join the required stream, sustain usable audio or video, and work after the approved persistence test. A green Ethernet link does not prove multicast membership, clock behavior or the correct AV protocol.
The worked approach here is for an IPv4 multicast AV deployment using the M4250 AV UI, with the GSM4212P as a concrete model example. Record the exact switch, endpoint protocols, firmware and management mode first. This is not an interchangeable recipe for every NETGEAR switch, every AVB system or every NDI transport.
Resolve the firmware and management mode before using a profile
NETGEAR’s September 29, 2026 release 13.0.6.8 lists GSM4210PD, GSM4210PX, GSM4212P, GSM4212PX, GSM4212UX, MSM4214X and XSM4216F. Use the firmware branch for the actual hardware; that list does not authorize loading the same image on other M4250 models. The release also adds or changes named AV profiles, so a profile from a screenshot may be absent or behave differently on another release.[1]
For that release, the notes explicitly state that Insight and Engage/AV UI management are mutually exclusive. The September2026 AV manual retains a conflicting coexistence passage. Follow the applicable current release guidance, establish the existing management owner and arrange any migration as a separate planned change. Do not repeatedly enable competing controllers or reset a production switch merely to reveal a menu.[1][3]
| Decision | Record before change | Why it matters |
|---|---|---|
| Hardware/firmware | Exact SKU, installed release, supported image and AV UI version | Ports, power, profile availability and known issues vary |
| Endpoint protocol | Source/receiver models, transport, audio/control requirements and timing needs | A profile name is not a universal compatibility promise |
| VLAN and uplink | Intended access ports, tagged uplinks, management path and any other switches | A local receiver can work while a remote path is incomplete |
| Recovery | Saved current configuration, authorized window and rollback owner | An AV profile can affect live ports and services |
Apply the endpoint-appropriate profile to a small pilot
In the documented AV UI, Configure > Network Profiles provides preconfigured templates and custom templates. Select the template that matches the actual endpoint vendor’s protocol requirements. Assign an explicit profile name and VLAN, then mark endpoint ports untagged and the intended inter-switch path tagged where the design requires it. Keep unrelated ports excluded.[2]
- Start with one source and one receiver on documented pilot ports. Retain the management connection and a recoverable baseline.
- Compare the selected template with the endpoints’ transport, control and clock requirements. Check which settings the template actually applies before accepting it.
- If a profile interface needs an IP address, use the planned static or DHCP setting. Creating a profile or an interface address is not evidence that the endpoints receive DHCP or that routing policy exists.
- Apply the profile, then read back its VLAN and port assignment. Confirm both ends of any uplink carry the intended VLAN before testing a receiver beyond this switch.
Transport matters. The manual distinguishes Video NDI 4 with multi-TCP from Video NDI 5/NDI 6 using Reliable UDP, and it gives different timing behavior to several audio/video templates. Do not select a generic Video profile simply because a device outputs a picture. This article’s IGMP checks apply when the actual stream uses IPv4 multicast.[3]
Prove receiver membership and the active querier
IGMP snooping learns which ports request an IPv4 multicast group. A querier periodically asks receivers to renew that membership. Without the required reports, membership can age out and forwarding can stop, explaining a stream that starts and later disappears. Check the actual stream VLAN rather than assuming the default VLAN 1 querier covers it.[4]
For the AV UI procedure in the manual, open Configure > Network Profiles and the intended configured profile’s menu, then Querier. Review the configured source address, election participation and operational state against the network design. If another switch or router is the elected querier, verify that it is the intended device and that its queries and receiver reports traverse the VLAN. Do not disable an existing querier blindly.[3]
| Evidence | Likely boundary to inspect | What would support acceptance |
|---|---|---|
| No receiver membership for the intended group | Receiver subscription, actual transport and endpoint/access VLAN | Expected group and receiver port appear when the receiver subscribes |
| Local receiver works, remote receiver does not | Tagged VLAN/uplink, multicast path and intermediate switch state | The same approved stream reaches the remote receiver |
| Playback starts then stops after an interval | Querier identity, report/query path and membership timeout | Membership refreshes and playback stays stable through the agreed observation period |
| Membership exists but media is unusable | Endpoint format, timing/clock, errors, congestion and application evidence | Correct audio/video with the actual operational settings and load |
Use the AV UI multicast information to correlate group, VLAN and receiver path; the current release adds a timeout column. The main UI exposes deeper multicast controls and status when needed. Keep a record of what the profile owns so an advanced manual change is not accidentally overwritten by a later profile edit.[1][3][5]
Run a receiver exercise that can expose a hidden path fault
Illustrative test: one encoder feeds a subscribed display on the local switch and another receiver over the approved tagged uplink. Start one receiver, add the second, stop and rejoin a receiver, then repeat with the expected concurrent streams. Record stream/group identifiers, VLAN, involved ports, timing and endpoint software versions. Use harmless test content and the actual expected media settings.
If the local display remains healthy while the remote one drops, retain that working control and inspect the uplink/VLAN/multicast state. Do not simultaneously replace the encoder, change every profile and disable loop protection. If membership and delivery persist but audio timing fails, investigate the actual protocol’s clock requirements; an IGMP fix alone will not establish correct synchronization.
Check the release notes before attributing a symptom only to the physical cable. Release13.0.6.8 documents specific profile and upgrade caveats, including an AVB MILAN clock-master issue and stale spanning-tree configuration in a particular upgrade path. Those are scoped caveats to review when applicable, not commands to alter every installation.[1]
Save the accepted configuration and test persistence deliberately
Applying changes within an AV UI page or profile window updates the active configuration. The manual’s persistence procedure then uses the top-of-page Save icon or text to save the running configuration to the startup configuration. Complete that explicit save after the accepted change; do not infer permanence from a working stream.[3]
Use Configure > Maintenance and Download Configuration to retain the accepted configuration securely, with the switch model, firmware and date. Document the intended source/receiver/profile/VLAN map and the known-good test. A later restoration must account for model and firmware compatibility rather than assuming any saved file fits any switch.[3][5]
During an approved window, perform a controlled restart or other agreed persistence verification and repeat the same stream/receiver checks. If a restart is not authorized, record that the save and backup passed but restart persistence remains untested. Keep the former known-good configuration and rollback decision available until the actual service owner accepts the result.
Keep the AV task connected to the rest of the network
Use the managed switch operating checklist for ownership, backups and ongoing records. The GS308EP/EPP guide covers a different local Easy Smart UI and ordinary PoE/VLAN diagnosis; it is not an M4250 profile recipe. If the installation also adds a WAX615, follow its separate Insight and wireless acceptance process. ALLMSP’s NETGEAR support page describes switch, VLAN, cabling and network support; AV endpoint design and protocol-specific commissioning should be agreed for the actual system.
Frequently asked questions
Does selecting an M4250 AV profile prove the AV system works?
Can I manage an M4250 with Insight and the AV UI at the same time?
Can I install the GSM4212P firmware image on any M4250?
No. Use the image and instructions for the exact SKU. The release 13.0.6.8 cited here explicitly lists seven models; other M4250 hardware can use another image or branch.
[1]What is the difference between IGMP snooping and an IGMP querier?
Why might an AV stream start and then stop?
Does the default VLAN 1 querier cover a stream on another VLAN?
Should I use the same profile for NDI 4 and NDI5 or NDI6?
Match the actual transport and endpoint requirements. The manual distinguishes an NDI 4 multi-TCP template from an NDI 5/NDI 6 Reliable UDP template. Do not treat every video stream as the same multicast workload.
[3]What should I inspect when a local receiver works but a remote receiver fails?
Does clicking Apply in a profile window save the startup configuration?
The AV manual distinguishes active changes from persistence. After accepting the configuration, use the documented top-of-page Save action to copy running configuration to startup configuration, then retain a secure backup.
