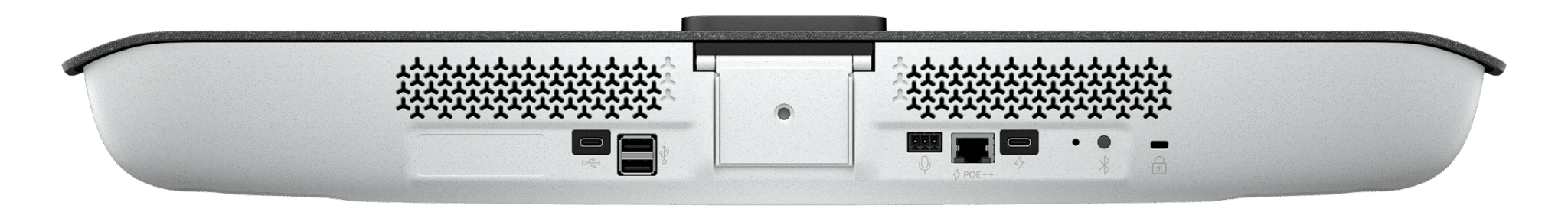

HP’s rear view of Studio V12 shows separate USB-C connections for the computer and power, plus the PoE++ network port. Use the port labels and the model’s current power instructions; a USB-C connector alone does not establish the correct data or power path. No cable is connected in this product image.[2]
Studio V12 has a USB-C computer connection and a separate USB-C power connection. A cable that fits one does not prove the other path works. Start with the exact model, approved power source and computer-data cable, then test camera, microphone and speaker selection independently. This guide uses the V12 manual and current product information; it does not treat the bar as a Studio X appliance or use a factory reset to troubleshoot a guest laptop.[1]
The physical example is a Studio V12 USB video bar with a computer hosting the meeting. Identify the label and normal room host. An original Studio USB bar, V52/V72 or Studio X appliance can have different ports and management instructions. Do not rearrange a managed room’s permanent wiring merely to try a guest laptop.[1][2]
Separate computer data from power
| Path or observation | Model-specific check | Useful boundary |
|---|---|---|
| Computer data | Use the V12 computer USB-C port, not power USB-C or downstream USB-A | Matching connector shapes do not establish matching functions |
| Power | Use documented 65W PoE++ or the named USB-C power adapter | Ethernet or a laptop data cable alone does not prove adequate power |
| Network | Establish whether Lens Cloud onboarding is intended | Network management is distinct from local USB meetings |
| Listed camera, black picture | Check physical cover, actual app camera and permission | Detection does not prove a visible scene |
| Video works, audio fails | Select/test the intended microphone and speaker separately | A camera pass or front LED does not test another selected audio device |
The V12 rear diagram identifies a USB-C connection for the computer, a separate USB-C power input, downstream USB-A connections and the PoE++ network connection. Connect the computer through the documented computer port and an approved data cable. A downstream USB-A port or the power input does not become the upstream computer connection because an adapter fits.[1][2]
For the documented PoE++ option, the manual requires 65W and names the Poly PoE++ power supply B5NH6AA, using the specified 802.3bt class 6 path. It separately names the USB-C power adapter B92SVAA. Confirm the exact current power accessory and installation with the room owner. Do not infer that any PoE switch, any USB-C charger or the laptop’s data cable supplies the specified power.[1]
V12 has no separate power button in the cited manual and starts when power is supplied. A lit bar still needs a working computer-data path. Network onboarding for Lens Cloud is a separate task from using the bar locally over USB; a network cable does not establish that the laptop can see its camera.[1]
Check update activity before disconnecting anything
Read the device indication in context. The V12 manual describes amber pulsing during a software update and instructs you not to disconnect USB during that update. It also documents Windows Update as a possible update path when the management app is absent. Check whether an update is active before reseating a cable or removing power.[1]
Test a listed camera’s image separately from detection
If V12 is listed but the picture is black, inspect the removable physical privacy cover and select the intended camera in a local preview. Check that the app is not using the laptop camera or a virtual device. A device name appearing in a list does not prove the lens can see the room.[1]
In Windows, check camera access for the relevant app and desktop applications under Privacy & security. On Mac, review System Settings > Privacy & Security > Camera. A browser meeting also has its own website permission. Close a local preview before opening the meeting app, then have a recipient describe a harmless room test object.[5][7]
Choose microphone and speaker independently
Select the intended microphone and speaker in the meeting app, test a sentence to a remote participant, and confirm the room hears their reply. A personal headset or laptop microphone can remain selected while V12 supplies video. HP specifically notes that the V12 LED cannot show the meeting’s mute state when its microphone is not in use.[1]
If a listed input cannot be opened, check microphone access for the affected app in Windows or Mac and the meeting/browser permission. A managed permission requires the administrator’s review. A working camera preview is not an audio test, and a microphone meter is not proof of delivery to the recipient.[6][8]
Compare a powered bar and a missing laptop endpoint
This is a fictional room comparison. It records separate results rather than claiming a reset, repair or customer outcome.
| Controlled comparison | Illustrative result | Decision |
|---|---|---|
| Identify V12 and the port carrying laptop data | Bar has power; laptop has no camera endpoint | Check data separately from power |
| Outside any update, compare approved direct data connection | Intended V12 endpoint appears | The changed path passed; do not credit an unperformed reset |
| Select V12 in the app and inspect physical lens cover | Recipient identifies the room test object | Image delivery passed; audio still needs separate tests |
| Test intended audio and restore the normal host | Both directions and normal room workflow recorded | A guest-laptop pass is not proof the next meeting is ready |
Restore the room and save a useful handoff
After the guest call, restore the approved original host and room arrangement. Verify its normal camera, microphone and speaker path, not just that a controller looks familiar. Record the V12 model, power accessory, host OS, app, actual data path, selected endpoints, device/app versions where available and each result.
If USB media works but management detection or settings do not, use the Studio Desktop detection guide. Review the current app support and release notes before following an old screenshot; the software and room device have separate update histories.[3][4]
When the caller intentionally uses a Focus 2 headset, test that personal audio path separately. An actual Logitech room belongs in the Rally Bar USB/BYOD guide. If the hardware is present and only Zoom audio fails, use the Zoom input/output and recipient checks.
Frequently asked questions
Which USB-C port connects Studio V12 to the computer?
Will one laptop USB-C cable provide all the V12 power and data I need?
Do not assume that. The V12 manual separates computer USB data from its documented power inputs. Establish the approved power accessory or PoE++ path as well as the data connection; a cable that powers another USB device is not proof it supplies V12’s requirement.
[1]Can I power V12 from any PoE switch or injector?
No. The cited V12 manual specifies 65W for its PoE++ path and identifies the applicable power supply and 802.3bt class 6 connection. Verify the exact current installation and accessory with the room owner rather than treating an Ethernet link as adequate power.
[1]Should I unplug USB when V12 pulses amber during a software update?
No. The manual describes amber pulsing during an update and says not to disconnect USB then. Check update activity before reseating cables or removing power, including the documented possibility of Windows Update when the management app is absent.
[1]Why is V12 detected but the picture is black?
Does the V12 mute LED describe a different selected headset microphone?
No. HP says the bar’s LED cannot indicate the meeting mute state if V12’s microphone is not being used. Check the actual selected headset or laptop input, its physical mute and the meeting app, then obtain a recipient-confirmed audio result.
[1]Must V12 join the network before I can use it as a USB video bar?
Network onboarding for Lens Cloud is separate from local USB use. Establish the computer-data and documented power paths for the USB meeting, then handle network management through the room owner’s approved process. Network presence alone does not prove laptop camera detection.
[1]Does V12 run a Zoom meeting by itself like a room appliance?
Can I use Studio X reset or firmware instructions on V12?
What should I check after the guest laptop disconnects?
Restore the approved original host and wiring, then verify its normal camera, microphone and speaker workflow. Record each result. A guest-laptop pass or an unchanged controller screen does not prove the room is ready for its next normal meeting.
